動態軌道衡信號通道

動態軌道衡信號通道

Weighing Channel of Automatic Railway Scale

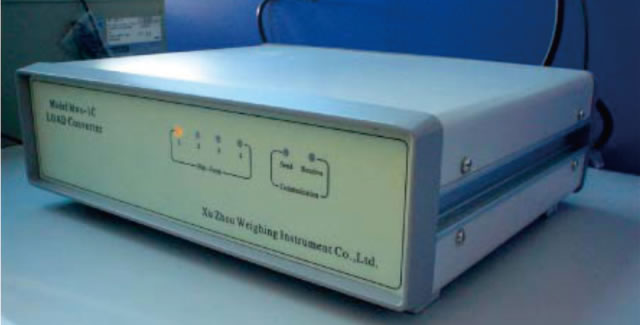

       百靈軌道衡信號通道采用智能、模塊化設計，為動態電子軌道衡的專用稱重儀表，采用光電隔離技術，方便與計算機進行通信，系統可靠性強。配備的擴展開關暈輸入和輸出電路，適合各種現場需要。通信接口可采用光隔離遠程驅動器，傳輸距離可達5-10公里。作為電子軌道衡的主要部件之一，它首先將傳感器的微弱重量信號進行放大、濾波，然后經模數轉換器將模擬量轉換成數字量送至計算機進行處理。具有高分辨率、高轉換速度和長期工作穩定可靠等特點。

Braun track scale signal channel by intelligent. modular design. for the dynamic electronic track scale special weighing instrument. adopt photoelectric isolated technology, convenient and computer communication, the system reliability Wiih the expansion of switch input and output circuit. suitable for all kinds of needs of field The communication interface with optical isolation distance drive. transmission distance up i0 5-10 km.As one of the main components of electronic track scale. it will first faint weight signal sensor are amplified and filtered. and then through an analogtodigital converter to convert analog signal into digital signal is sent to the computer for processing Has the advantages of high resolution. high conversIon speed and long-term stable and reliable work etc

技術參數

輸八方式：4/6線制；

滿暈程輸：15-18mV；

輸出滿碼：65535字；

接口方式：單臺面：RS232串行端口；

采樣速率：大于或等于200次／秒；

輸出分辨率：1 kg/字；

環境溫度：-20℃~+55℃

環境濕度：<95%

整機電源：不大干50w

漂移：003 %/48小時

非線性：005%．

綜合穩定性：0.05%/48小時

系統動態響應時間：大干65ms、小于120ms。

遠距離射頻車號識別系統

      遠距離RFID射頻識別系統是一種集計算機技術、信息采集處理技術、無線數據傳輸技術、網絡數據通訊技術、機械電子自動控制技術等多學科綜合應用為體的自動化摔制產品，符合國家鐵路部門相關技術要求。該系統產品是通過對遠距離移動、靜止目標進行非接觸式信息采集處理，實現對各婁物體、設備、車輛和人員在不同狀態（移動、靜止）下的自動識別，從而實現目標的自動化管理。

Long distance RFID lradio frequency identification} system is a set of computer technology. information acquisition and processing technology, wireless data transmission technology, network data communicafion technology, mechanical and electronic automatic control technology. the application of multldisciplinary integrated automation control products. in accordance with the requirements of the national

railway minisW door It Is through the non-contact data acquisition of long-distance moving and stationarV target, implementation of all kInds of objects, equipment. vehicles and personnel in different states （mobile and stationary） automatic identification. so as to realize the goal of automation management
