產品概述
Product description
自動皮帶采制樣裝置是在吸收國外先進技術經驗基礎上，根據國內工業現狀而設計開發的系列產品。它實現了對被采集物料進行全斷面取樣，與皮帶輸送機實現連鎖，能夠從采樣、破碎、縮分、集樣、余料返回整個過程全部自動化，使取樣具有代表性。廣泛應用于冶金、化工、煤炭、港口等行業。
自動皮帶采制樣裝黃可分為BLCYZ皮帶中部采樣裝置和BLCYT皮帶頭部采樣裝置。
采樣工藝符合GB/T19494-2004國家標準要求
Belt automatic sampling device is In the absorption of foreign advanced technology and experience. according to the present situation of domestic industry and the design and development of series products It achieves the collected materials full section sampling.and the belt conveyer to achieve linkage from sampling. crushing. reduction, set. morethan expected to return the whole process is automatic, make sampling representative
Widely used in metallurgy, chemical industry, coal. port and other industries
Automatic belt sampling devlce can be divided into BLCY-Z belt middle sampling device and BLCYT belt head sampling device
Sampling process n line with GB/T19494-2004 national standards
設備組成／Equipment components

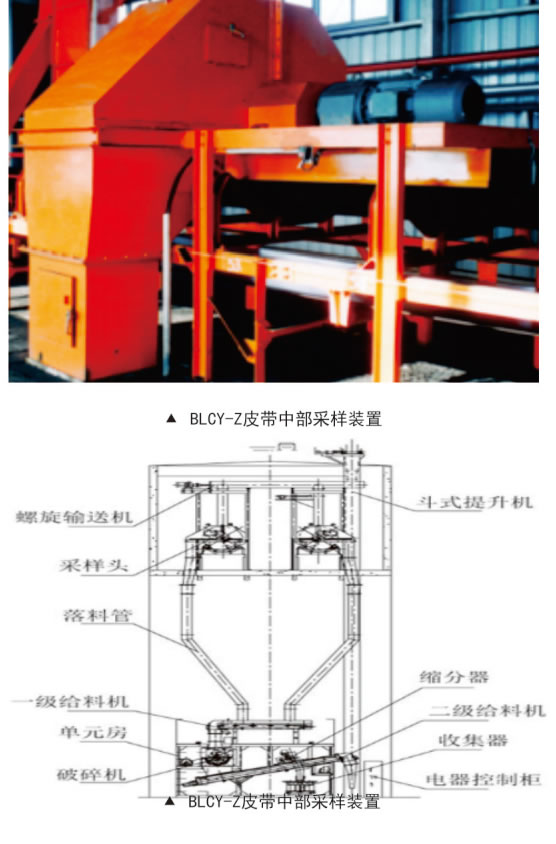

BLCY-Z皮帶中部采樣裝置主要由以下部件組成璇轉采樣頭、初級皮帶給料機、破碎機、二級皮帶給料機、縮分器、樣品收集器、斗式提升機、余料返回系統以及電氣控制系統組成。
BLCY-Z belt ln the central sampling device mainly by the following components:rotary sampling head. the primary belt feeder. crusher. two belt feeder. shrinkagedivider. sample collector. bucket holist. excess stock return system and electric control system composed of.
工作流程／Work process

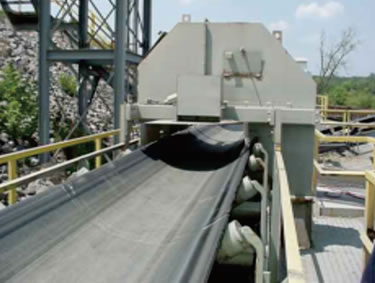

初級采樣頭與主皮帶連鎖，按照設定的時間間隔，采樣頭旋轉周，從運動的帶式輸送機上取得一個完整的橫截面的子樣，子樣通過溜槽落人初級皮帶給料機，由初級皮帶給科機將物料均勻地送八破碎機。破碎機將物料破碎到所要求的粒度，由二級皮帶給料機經縮分器縮分出樣品，最后樣品被收集到防水、防塵的容器中。采樣系統中的余料通過斗式提升機返回到輸煤系統帶式輸送機上。
BLCY-Z belt in the central sampling device maInly by the following components:rotary sampling head. the primary belt feerjer. crusher. two belt feeder. shrinkagedivider. sample collector. bucket hoist. excess stock return system and electriccontrol system composed of Pnmarysampnng head and main belt chain. according to the set time intarval.sampling head rotation of one week. from movement together with the conveyor has a complete crosssection sample. sample through a chute fall into primary belt feeder, feeder by the pnmary belt material evenly send into the crusher Crusher material is crushed to the required size, by the secondary belt feeder through the shrinkage divider shrinkage separation of samples. the sample were collected to waterproof and dustproof container. Over sampling in feeding system by the bucket elevator to return to the coal handling system of belt conveyor.
 |
